VACUUM CAPACITORS

MEIVAC MEIDENSHA

  • UW55 typeUW65 typeUW70 typeUW55A type
    Vacuum capacitorsUW series, up to 94 Arms (13.56 MHz)

    Please refer to the link to check more details for each model.

  • SPECIFICATIONS
    Type Capacitance
    (pF)
    Voltage
    (kVp)
    Maximum allowable current
    (Arms)
    External dimensions
    (mm)
    Mass
    (kg)
    Min. Max. RF
    Operation
    Peak
    Test
    13.56
    MHz
    40
    MHz
    60
    MHz

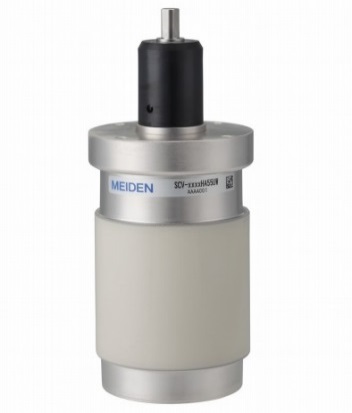

    SCV-200.5FH55UW-C 6 50 12 20 36 71 64 L133.5 ×
    φ55
    0.7
    SCV-201H55UW-C 10 100 12 20 72 71 64
    SCV-151.5FH55UW-C 7 150 9 15 94 71 64
  • UW55 typeUW65 typeUW70 typeUW55A type
    VM series, up to 100 Arms (13.56 MHz)

    Please refer to the link to check more details for each model.

  • SPECIFICATIONS
    Type Capacitance
    (pF)
    Voltage
    (kVp)
    Maximum allowable current
    (Arms)
    External dimensions
    (mm)
    Mass
    (kg)
    Min. Max. RF
    Operation
    Peak
    Test
    13.56
    MHz
    40
    MHz
    60
    MHz

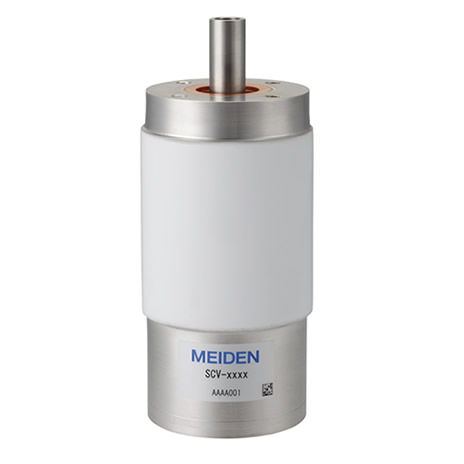

    SCV-155M 50 500 9 15 100 76 68 L140 ×
    φ73
    1.4
    SCV-205G 50 500 12 20 90 68 62
    SCV-510M 50 1000 3 5 100 76 68
    SCV-514M 90 1400 3 5 100 76 68
  • UW55 typeUW65 typeUW70 typeUW55A type
    FC series: up to 100 Arms (13.56 MHz)

    Please refer to the link to check more details for each model.

  • SPECIFICATIONS
    Type Capacitance
    (pF)
    Voltage
    (kVp)
    Maximum allowable current
    (Arms)
    External dimensions
    (mm)
    Mass
    (kg)
    RF
    working
    Peak
    test
    13.56
    MHz
    40
    MHz
    60
    MHz

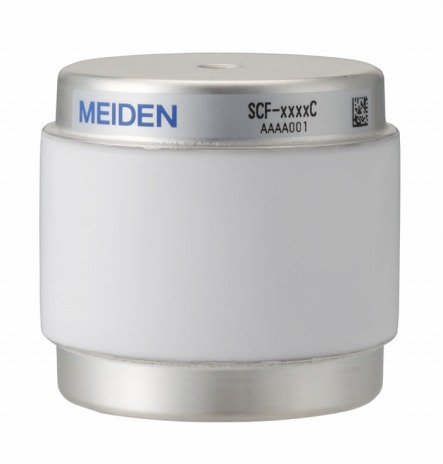

    SCF-200.1C 9 12 20 6 19 28 L50 ×
    φ62.4
    0.6
    SCF-200.5C 50 12 20 36 76 68
    SCF-200.75C 75 12 20 54 76 68
    SCF-201C 100 12 20 72 76 68
    SCF-201.5C 150 12 20 100 76 68
